Recently Simon and I were on a case together were we FINALLY saw a new remote management & monitoring (RMM) tool used by the operator. Its usually the famous trio AnyDesk, Atera Agent or SplashTop being used by the most trivial Ransomware or Initial access brokers. We see it so often that we fall back on muscle memory during triage.
These tools have various different logs that can be used e.g. to determine the IP address of the operator that accessed the installation, or the account id associated with the AnyDesk account. Useful information to track adversaries.

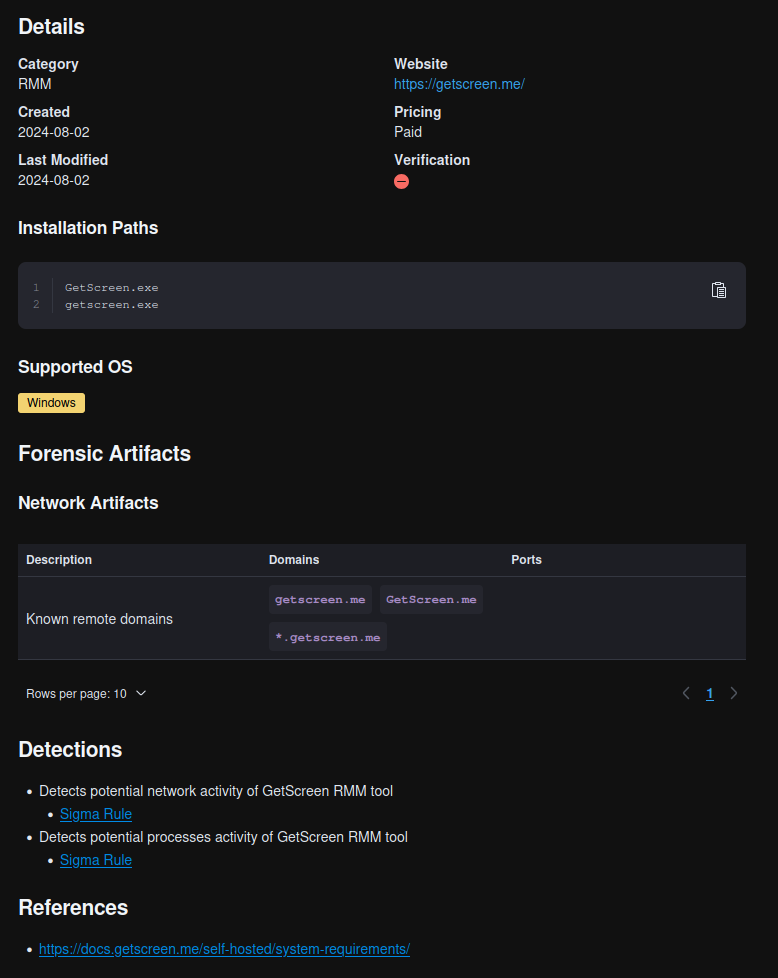

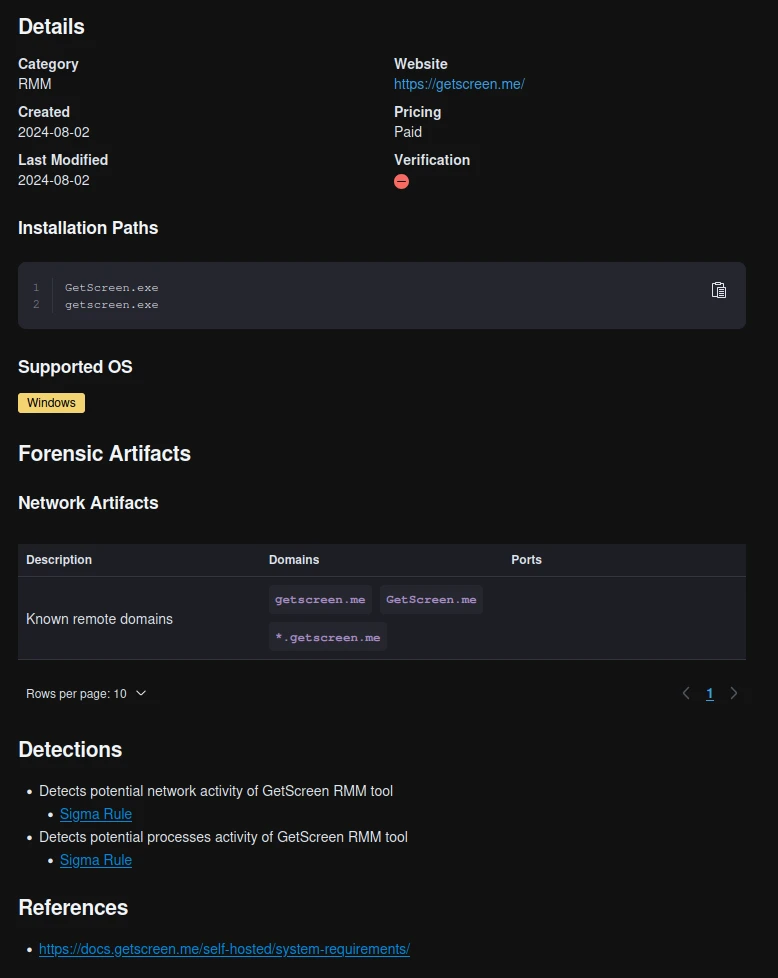

These are all well documented on sites like lolrmm.io with a lot of specific artifacts to find on the operating system its used on. Additionally Velociraptor Artifact Exchange has a lot of artifacts that can query and parse those RMM logs, e.g. AnyDesk which will save you a lot of time during triage.
But with GetScreen it was different. There was not much to find besides known remote domains, which forced us to find it ourselves.
This blog post doesn’t cover common execution artifacts. If you’re looking for those, you already know where to find them.
Features

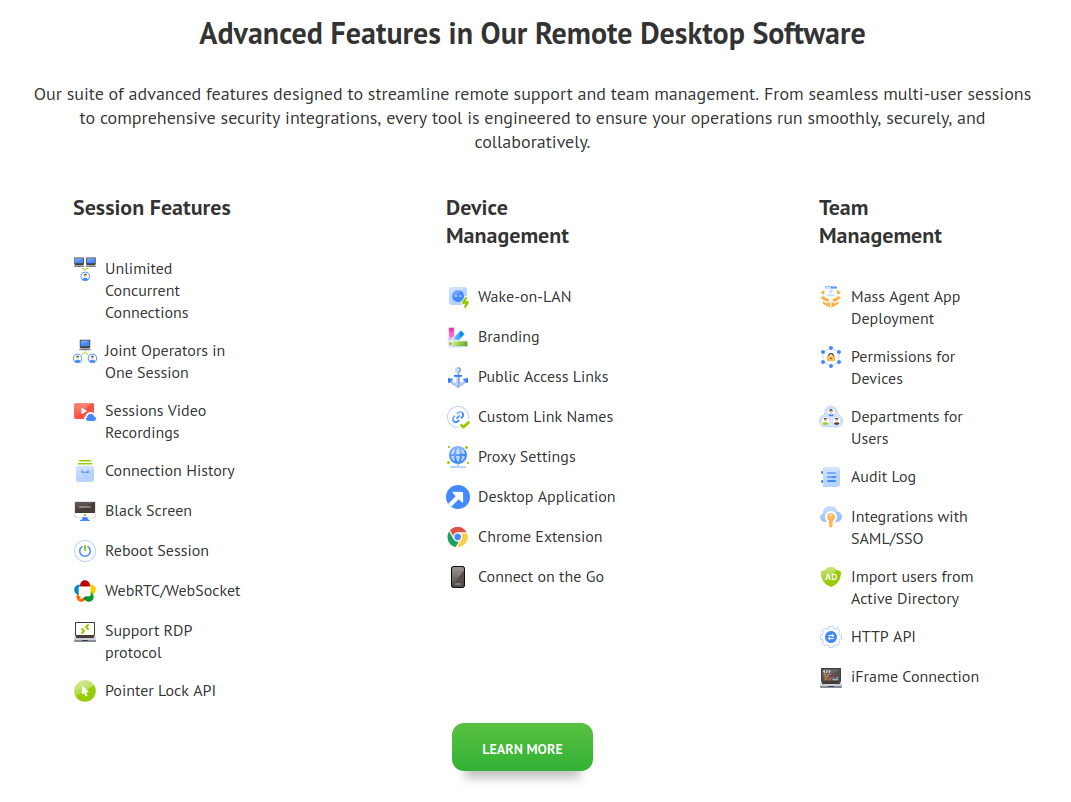

As per the tools documentation found on https://getscreen.me/en/ it appears to have a wide range of features including screen control, terminal and interactive file explorer among other things.
It appears to use WebRTC for communication between the agent and the Getscreen infrastructure. From a forensic point of view the WebRTC traffic does not behave like traditional C2 communication with fixed IPs or easily identifiable domains. With WebRTC connections are dynamically established and encrypted, which makes it harder to rely on network logs alone to identify or trace sessions.
In practice, firewall and proxy logs don’t give you much beyond the initial connection to GetScreen.
Onboarding

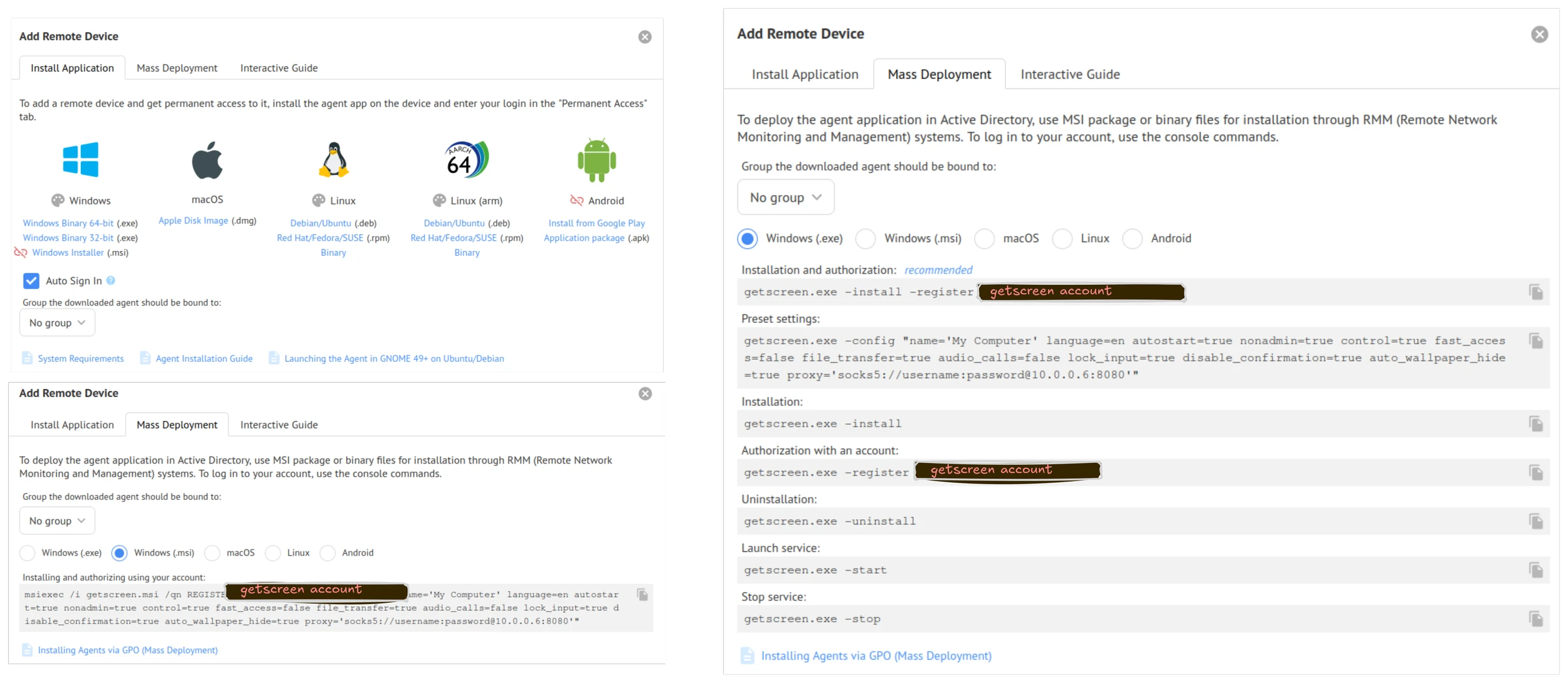

Let's start by taking a look at how this tool can be deployed on a Windows system. You have 2 options:
- MSI installer
- Portable executable (PE)

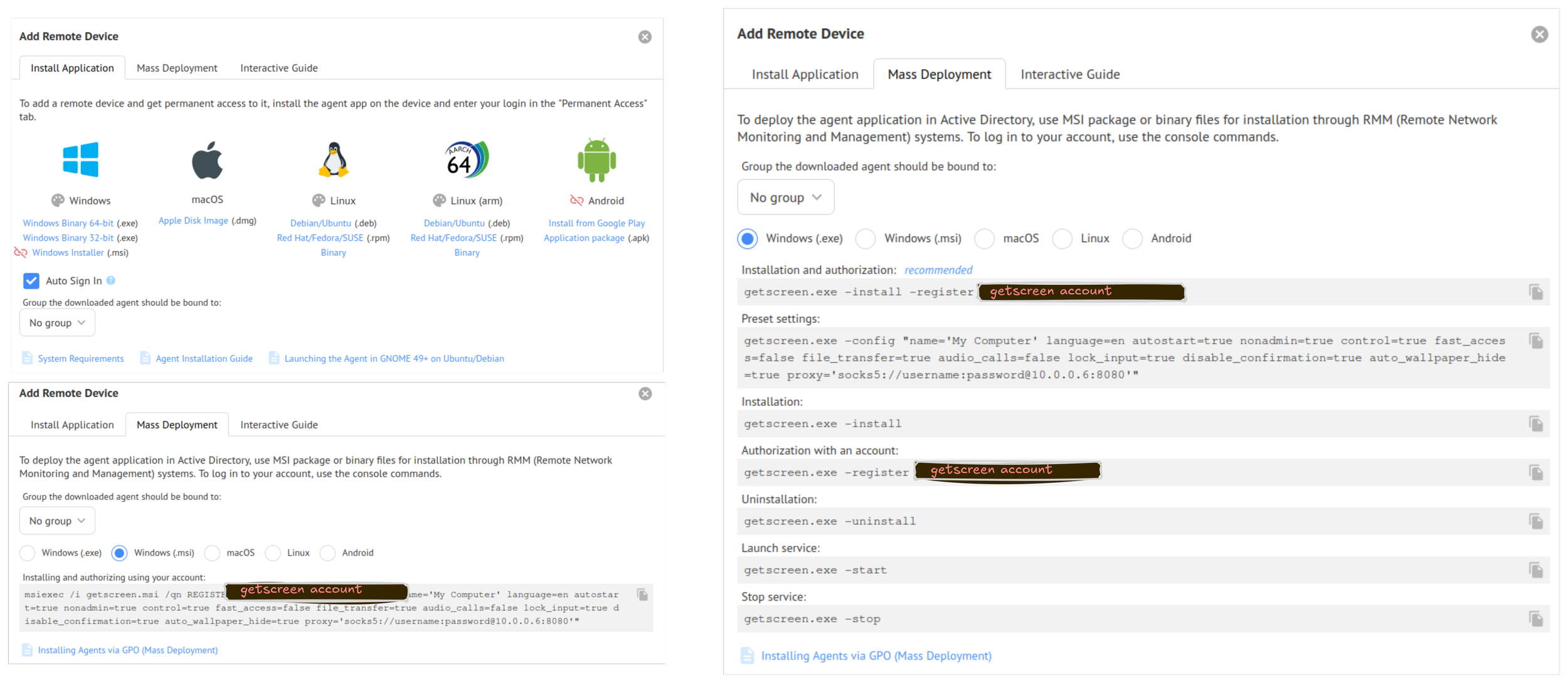

They can both be used together with commandline arguments which is exactly what we saw on the case we investigated. The intended use for this method is to deploy the agent through a deployment tool like Intune, SCCM or GPOs.
The process argument we saw was:
getscreen.exe -install -register [email protected]
In our case, the operator exploited an application, obtained a shell, and then transferred getscreen.exe to disk to establish a more stable session.

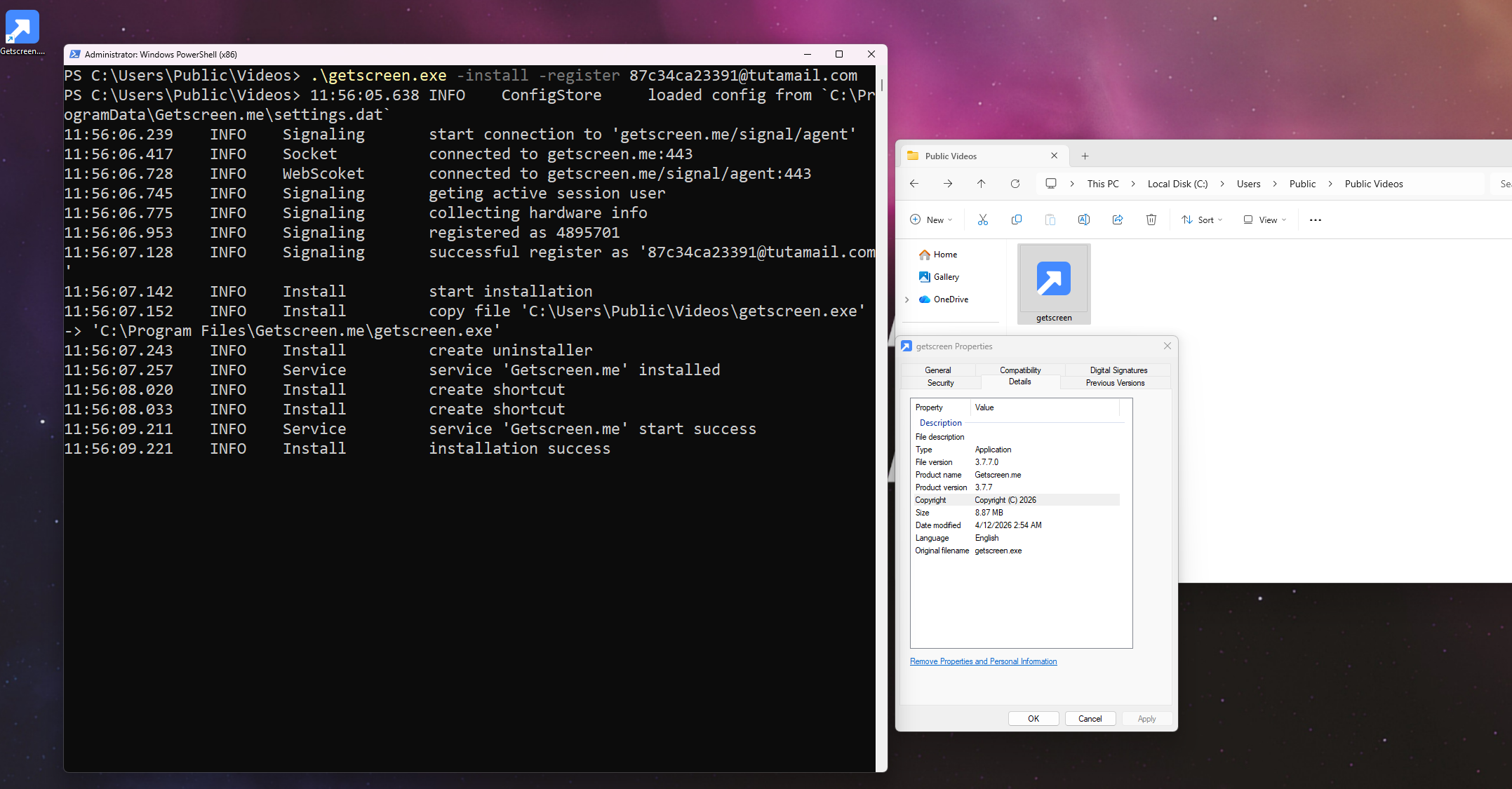

The image above shows the command-line installation method and already exposes several artifacts that become useful during analysis, which we will explore in more detail later.
However, this is from the operator’s perspective, not what you typically get as an investigator. In some cases, traces of this activity can still be recovered from artifacts like the RDP bitmap cache.
Application logs

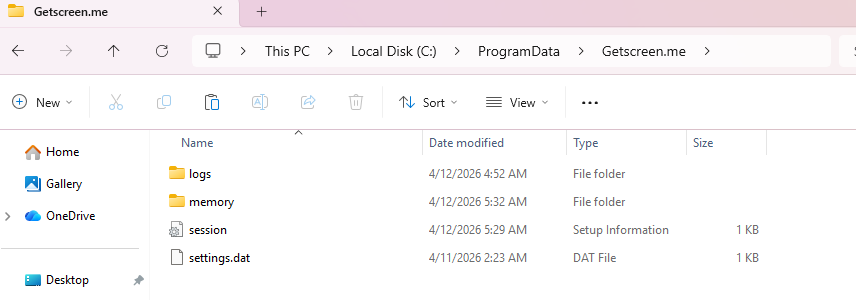

There are two primary log files located in C:\ProgramData\Getscreen.me\:
<date>.log<data>.gui.log
The files contain the timestamp in UTC, but not the date and year. To reconstruct a timeline you have to correlate with the filename, as the application will create a separate log for each day.
The difference between those two logs is that the gui-log is everything related to what is happening to this host from the operators point of view.
So whenever the operator is interacting with the remote host either through the control mode or the interactive file explorer it will be shown in here.
In contrast the <date>.log is more specific to the application running on the remote host. This includes details such as registration information and the configuration used by the agent.

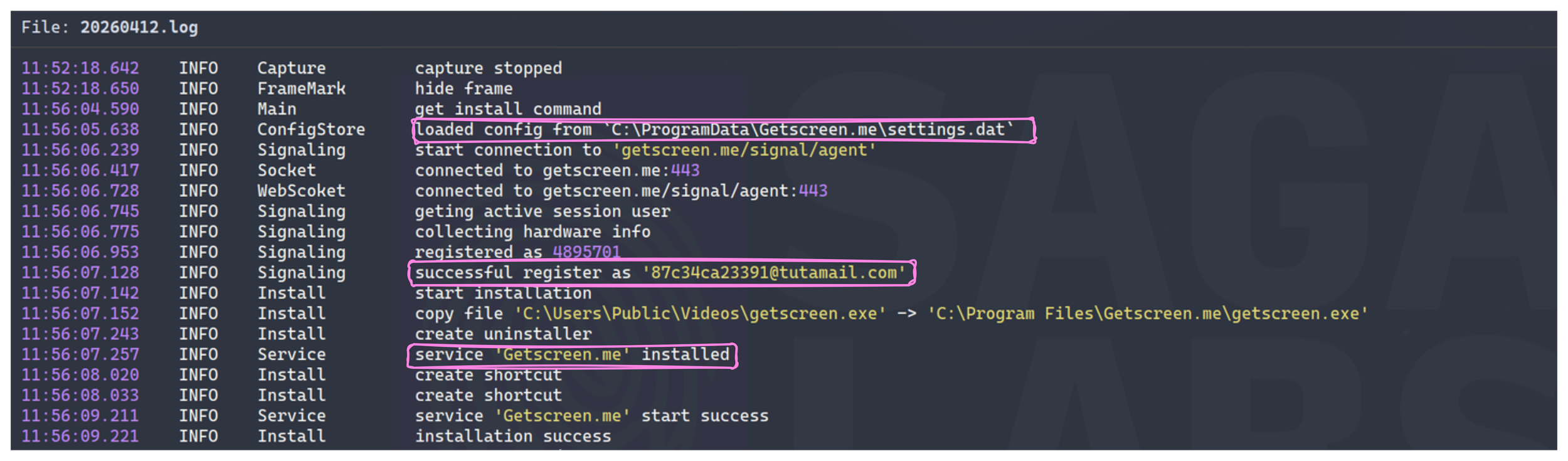

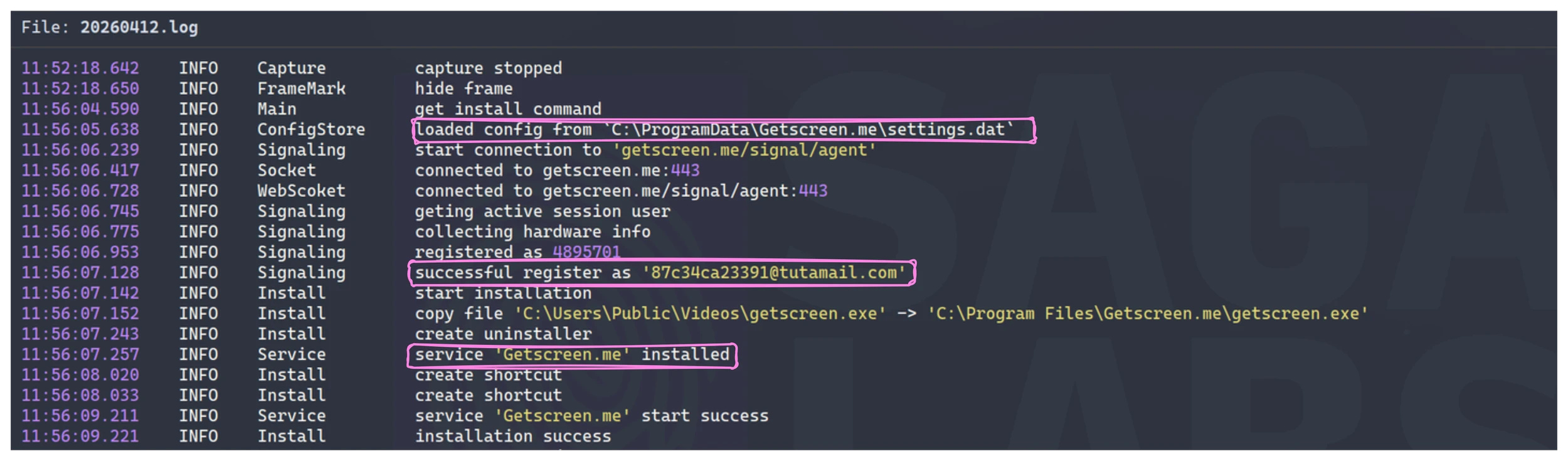

As shown on the image above the e-mail address of the GetScreen account is present, leaving room for OPSEC mistakes and a opportunity for us to pivot or attribute. It also appears that the application loads the settings.dat file.
Settings.dat

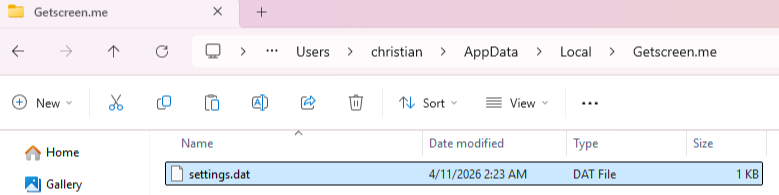

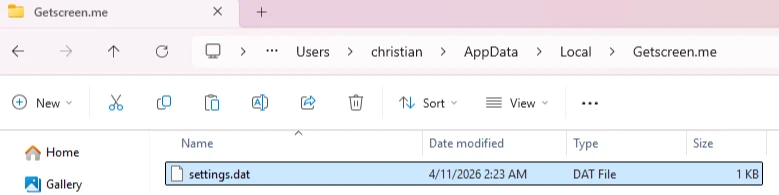

The settings file in AppData appears to be a copy of the agent configuration likely used to store runtime settings for the user context.

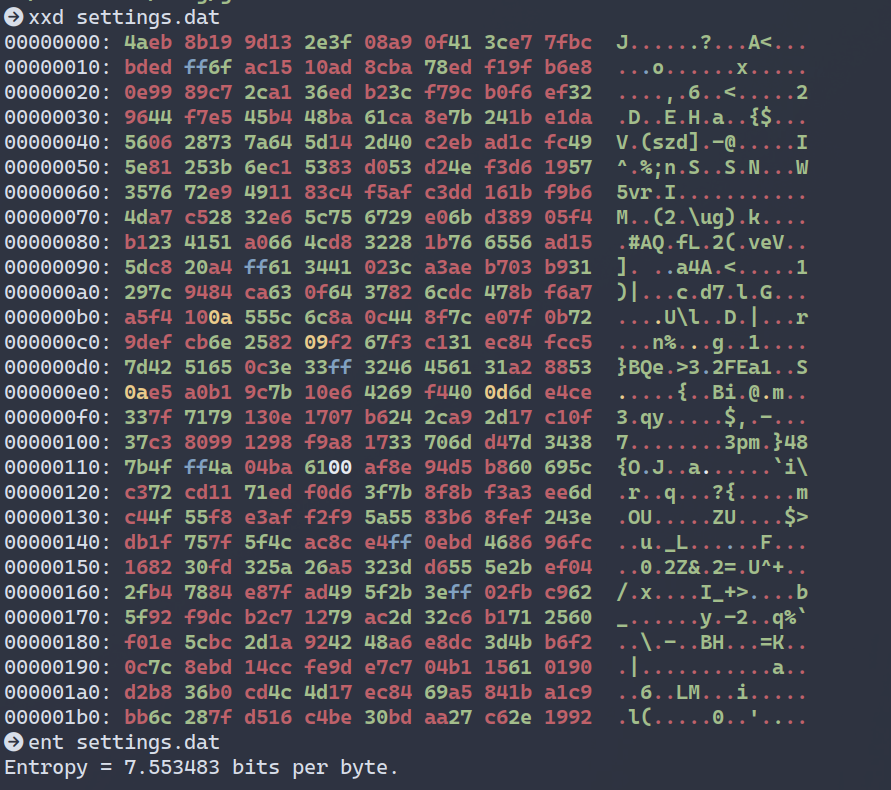

The settings.dat doesn't have a known file signature in its first 16 bytes, and there is no readable strings. It appears to have a high-entropy which could suggest that it is either encrypted, obfuscated or some application specific format that only getscreen.exe is able to parse internally.
As a result, it does not provide immediate value without further analysis, but if combined with the potential decryption method found in the PE, it could reveal a lot of valuable information.
Victor, one of our brilliant instructors spend an evening reversing the binary, and figured out that it containing a statically assigned AES key, which could be used to decrypt the settings.dat file.

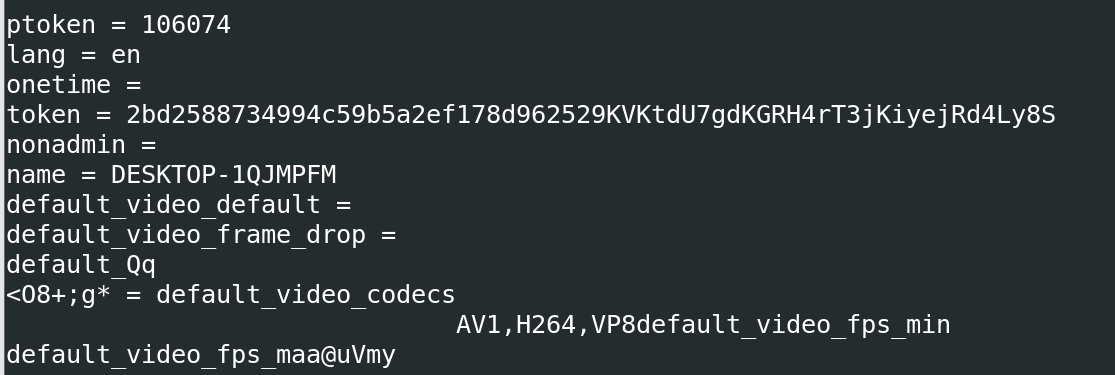

As shown on the screenshot above, it doesn't really reveal any interesting information.
Service

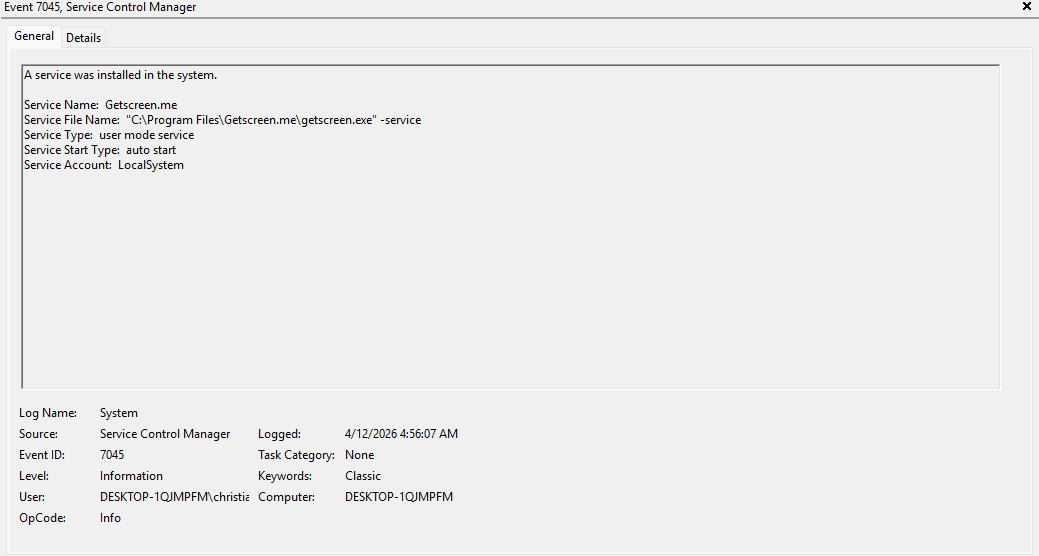

As part of the installation the tool installs itself as a service for persistent access across reboots. The service name is quite easy to identify as its named Getscreen.me.
Pipes

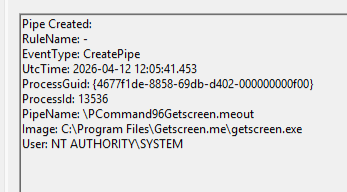

Upon installation the software immediately creates a new named pipe:PCommand*GetScreen.meout

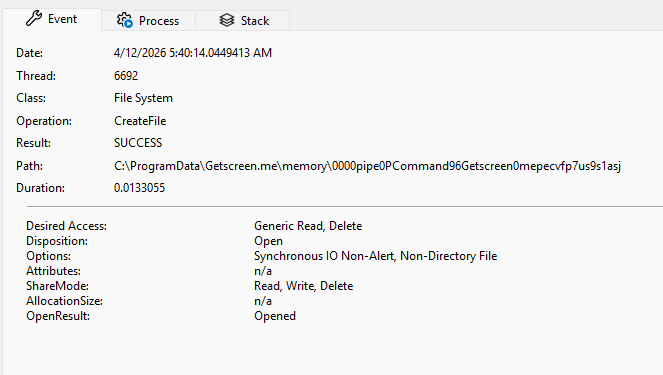

If we take a look at the CreateFile operations for GetScreen we notice that in the C:\ProgramData\Getscreen\memory suggests the use of file-backed or memory-mapped buffers for handling larger data transfers such as screen capture streams.
This could indicate that GetScreen splits its communication into two parts where one channel (the named pipe) for control and commands, and another (memory/file) for actual data transfer.
GUI / Control mode

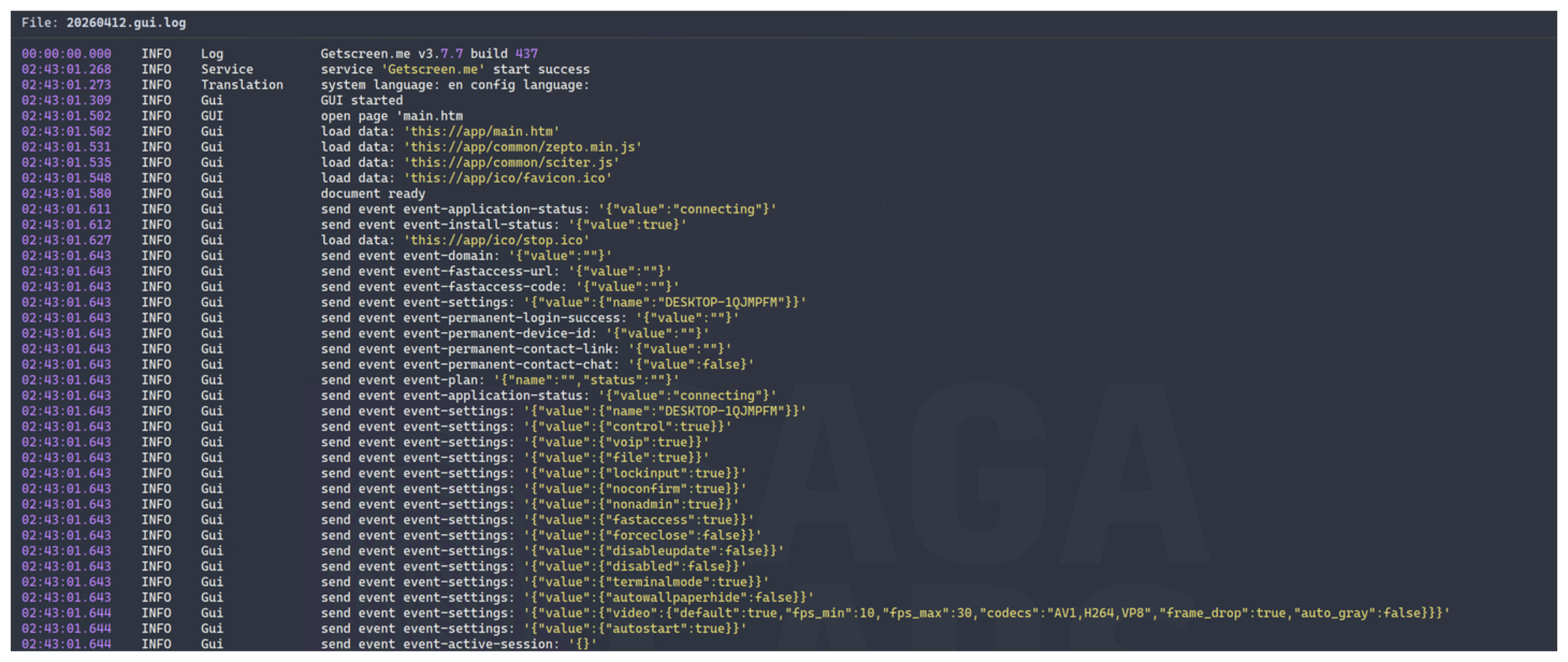

When connecting using the graphical session method in GetScreen, the mode will appear in the *.gui.log as method:control.
It gives the operator a session similar to tools like SplashTop, Level.io and similar.

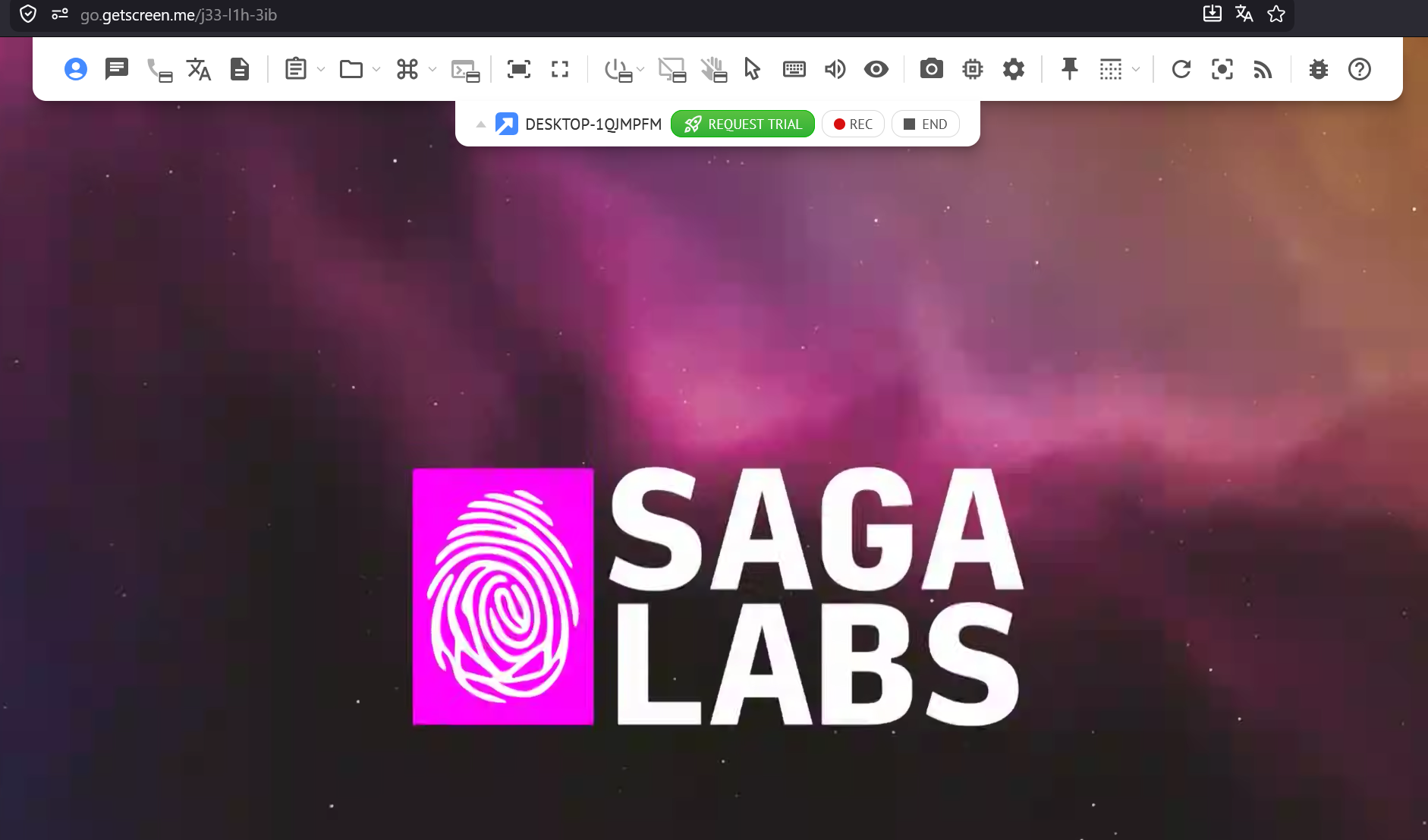

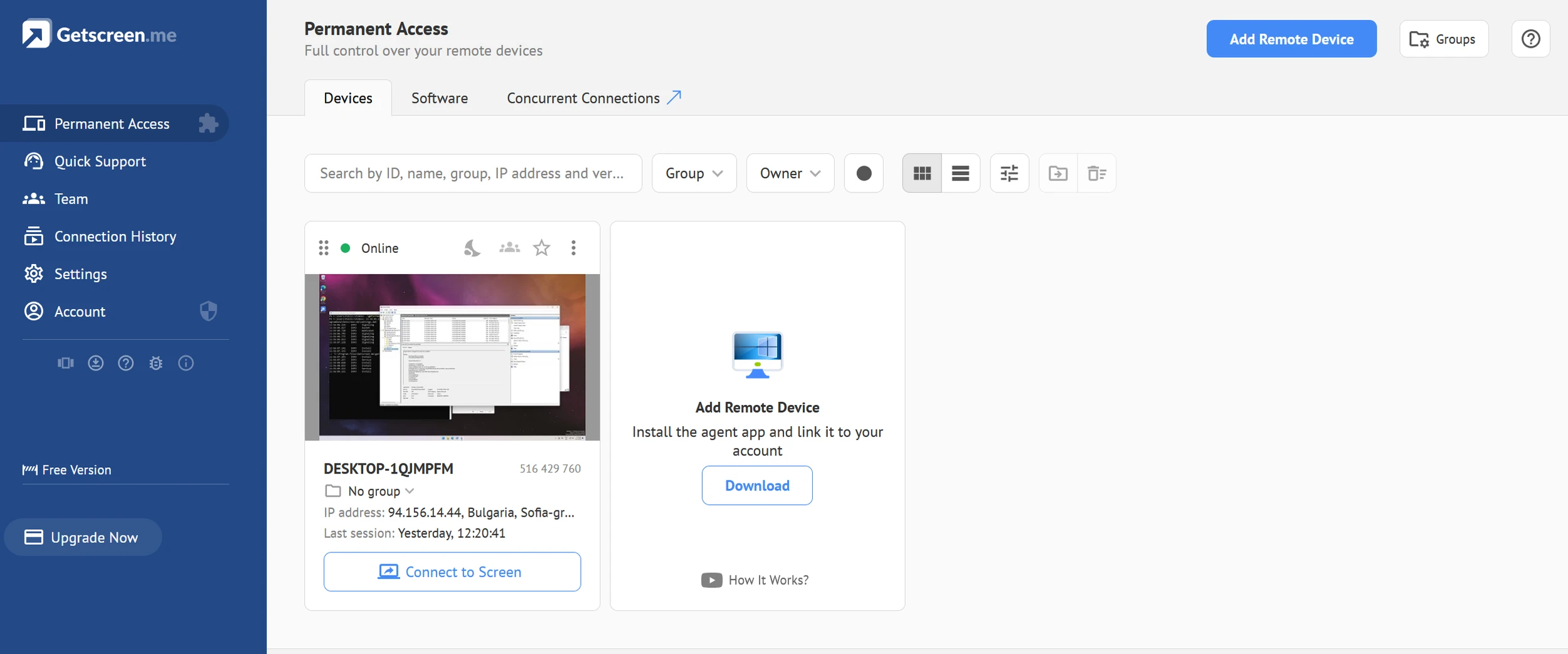

As shown below, i'm controlling DESKTOP-1QJMPFM through the browser.
There will be a lot of information related to the display information that is used by the operator. Not something of much interest for us, but maybe you can use it for something..?

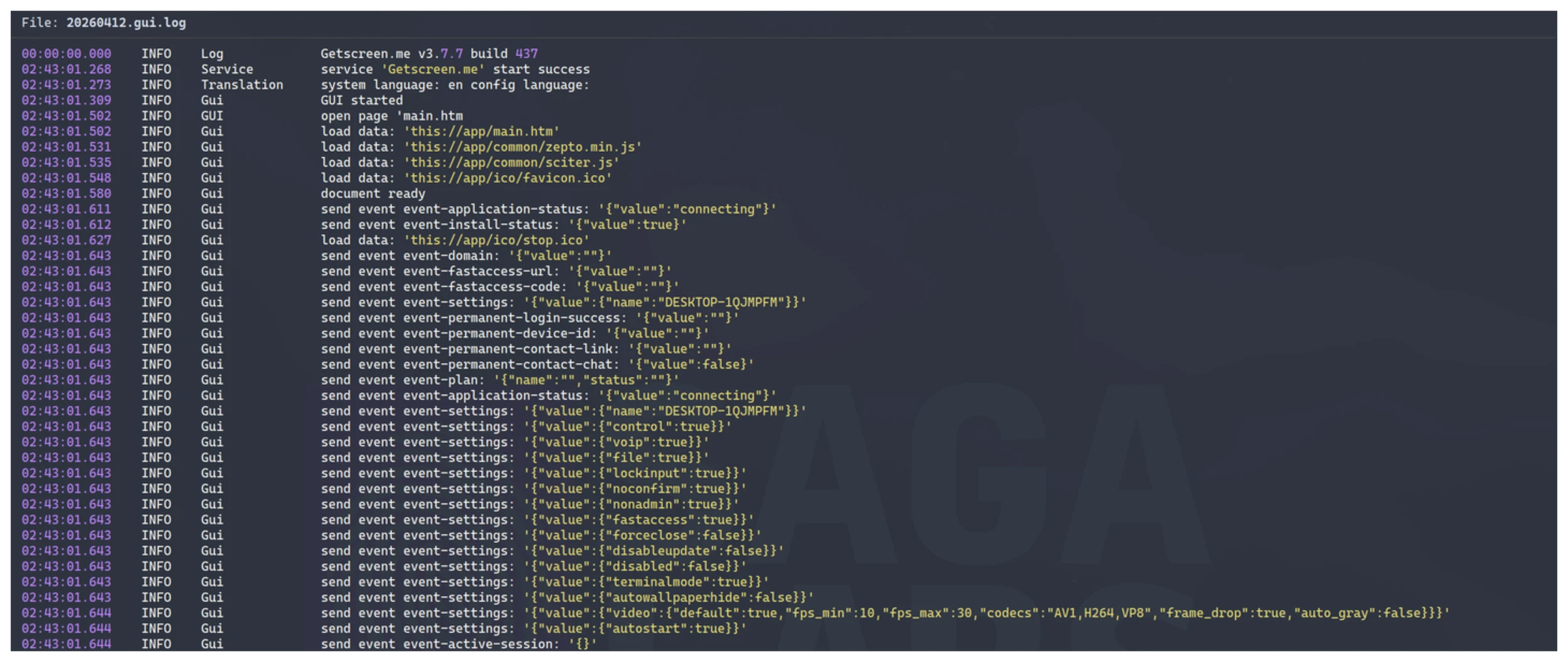

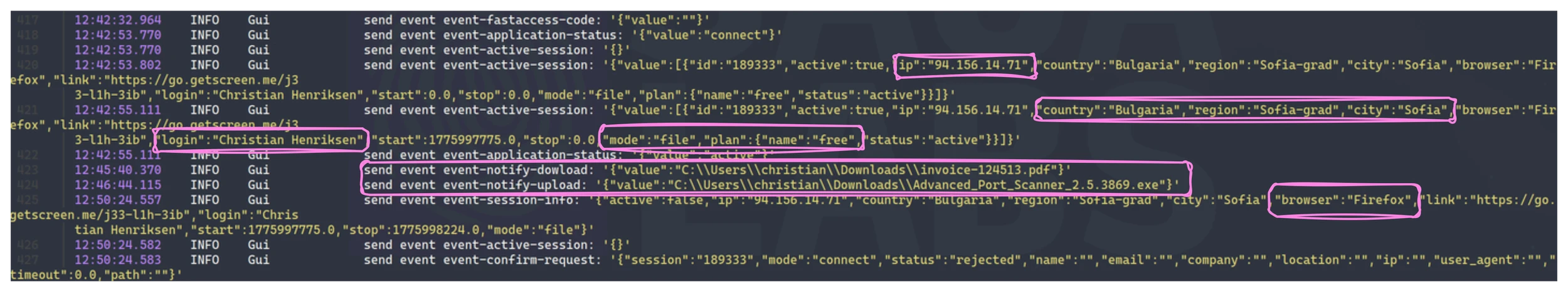

As shown on the image above there is a event called event-active-session which displays information about the GetScreen subscription plan, which browser is used by the operator, their IP Address, a country look up with region, account name and which mode is used. When the Interactive File Explorer is used, the mode will be mode:file
event-notify-download displays which file what downloaded through the GUI from the remote host. We actually used this to confirm that a specific file was exfiltrated. This log does not show if the file was actually successfully transfered - meaning that you will have to correlate with netflow or similar logs.
One thing I noticed was that deleting a file through the File Explorer in GetScreen didn't show up in the log. That also was the case for creating new folders. That is quite odd, and something you should be aware of in your investigation.
Registry activity
Of course when the GetScreen program is deployed subsequently launched the registry keys that forensic analyst usually use to track executables are updated (MuiCache, AppCompat etc.)
However, the GetScreen application was also found to set a series of registry keys specific to the application.
The identified keys were:
HKU\{SID}\Software\GetScreenHKU\{SID}\Software\GetScreen\Getscreen.me

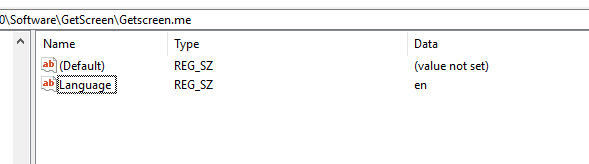

The keys hold program setting such as language settings
Analysis found that beyond the application specific keys, a key for audio policy is created, in the registry path:
HKU\{SID}\Software\Microsoft\Internet Explorer\LowRegistry\Audio\PolicyConfig\PropertyStore\871f71b_0
The audio policy key holds settings alongside the path for the executable.

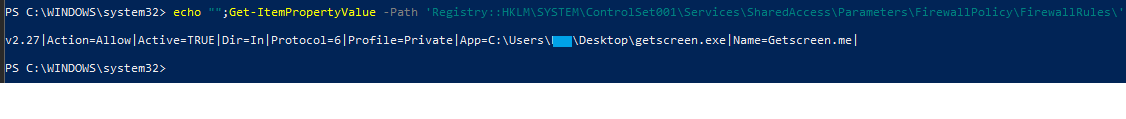

Similar to the rule for TCP traffic, a rule is created for UDP traffic by specifying the protocol token 17.
Elevation mechanism
Digging deeper into the runtime operations of the GetScreen application, it was found that the application implements an elevation mechanisms.

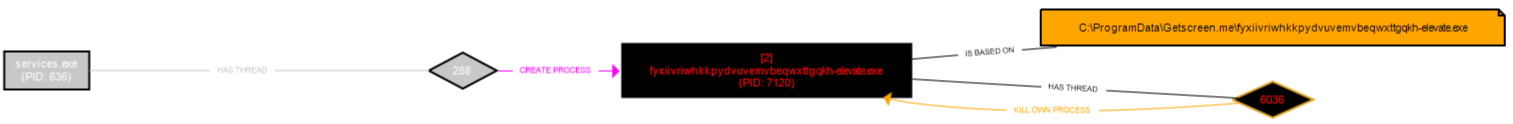

A simplified overview of the elevation mechanisms execution are shown in the picture below.
This executable you can track in logged/recorded process executions, as well as execution artifacts such as prefetch files.

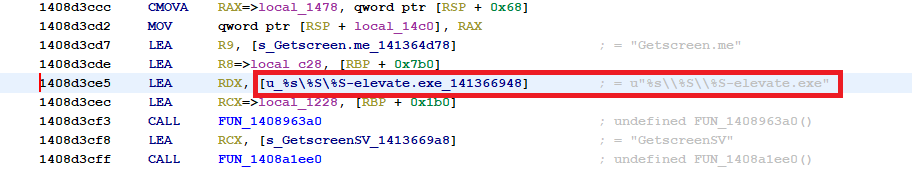

While the prefix of the executable (in this execution fyxiivriwhkkpydvuvemvbeqwxttgqkh) varies. A quick UPX unpack, and a look at the getscreen.exe binary verified that the suffix of the elevation binarys name (-elevate.exe), is hardcoded.
Predictable executable names, gives us as analyst, a great starting point regardless if we are doing incident investigations, detection engineering or genereally threat hunting.
Wrap up
GetScreen isn't really any different from any other tools. We just thought it would be nice to contribute with our findings, as there was not much out there already.
If you are a security engineer, go ahead and take a look at https://lolrmm.io/. If you know your environment, you should not see new RMM tools popping up.
These findings we obviously contributed to the project.
We hope you liked it, and encourage you to explore yourself.
